Product description
OMP CMFAL6

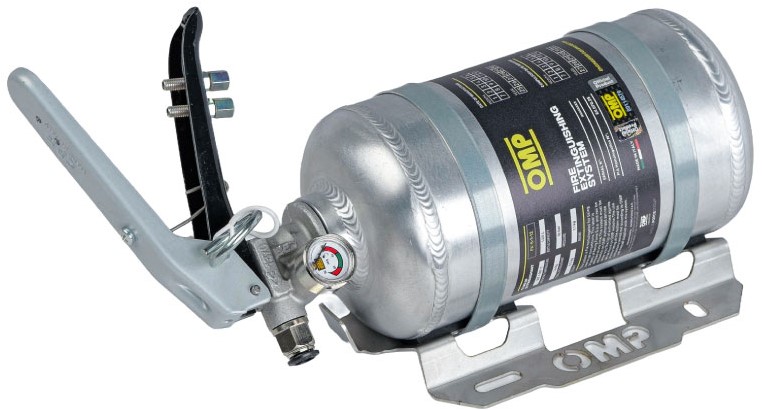

Fire extinguishing system manually activated engineered for formula and prototype cars requiring a compact and high-performance fire suppression system. CMFAL6 system make use of FK-5-1-12 clean agent. The fluid stored in a lightweight 100 mm aluminium bottle, it delivers fire suppression performance through a precision-engineered nozzle and tubing layout to maximize performance. Mechanic valve in aluminium.
Designed for installations where space and weight are critical. Fixing brackets, clamps, tubing and connection included.
• Suitable for single seater cars
• Suitable for electric and hybrid cars
• 1.4KG FK-5-1-12 extinguisher
• Manually activated
• Mechanic valve in aluminium
• Anti-counterfeit OMP hologram
• 100mm aluminium bottle
• Bottle lenght: 196mm
• Total lenght: 288mm
• Total weight: 2,20kg ±5%
Parts included:
2x Aluminium piping 8mm [CD0-0323-A01]
1x Aluminium piping 6mm [CD0-0323-B01]
2x Sheath 10mm [CD0-0324-A01]
1x Sheath 8mm [CD0-0324-A03]
6x Atomizer nozzle - 5 for engine and 1 for cockpit [CD0-0393-A01]
3x 8mm T connection [CD0-0392-A02]
2x 8mm 90° connection [CD0-0391-A02]
1x 6mm 90° connection [CD0-0391-A03]
1x Pipe reduction 6-8mm [CD0-0399]
2x 8mm T connection [CD0-0390-B01]
1x Pull handle cable 3,795m [CD0-0335]
1x Pull handle cable 2m [CD0-0336]
1x Bracket and clamps [CD0-0563]
2x Sticker [XMC-855]
FK-5-1-12 is a high-performance clean extinguishing agent specifically designed to provide rapid and effective fire suppression. The agent is non-toxic, electrically non-conductive, and safe to discharge in cockpit and engine bay, offering maximum protection for both drivers and critical vehicle systems. Its clean agent technology ensures fast flame knockdown while minimizing potential damage to high-value components and it doesn’t leave any residue in case of unwanted activation.
Because it has zero ozone depletion potential and very low global warming potential, FK-5-1-12 also represents an environmentally responsible fire protection solution that meets modern safety and sustainability standards.
