Product description

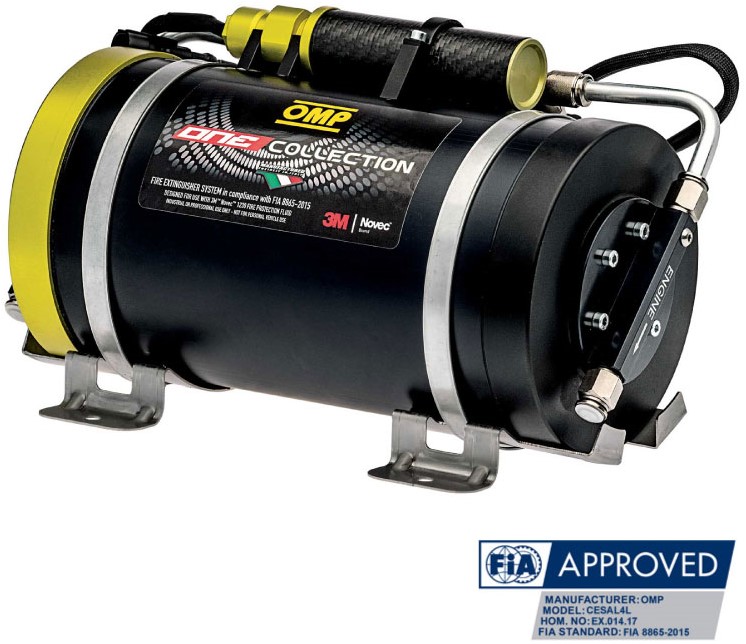

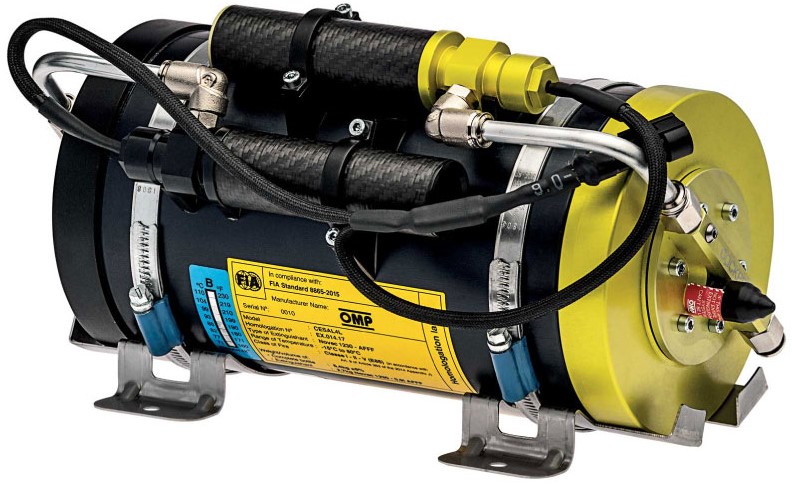

CESAL4 LE
Compact and lightweight fire extinguisher system, electrically activated, suitable for saloon cars. FIA 8865-2015 rules complying. The system gets pressurized when activated enabling the discharge of the extinguishant. 3 noozles are for the engine bay in order to protect the most critical and dangerous parts depending on the type of vehicle, 2 noozles are for the cockpit to ensure the driver front and rear protection. Fixing brackets, clamps, tubing and connections are included.
• Full FK-5-1-12 extinguishing system electrically activated
• Aluminium bottle
• Total weight: 5,5 Kg

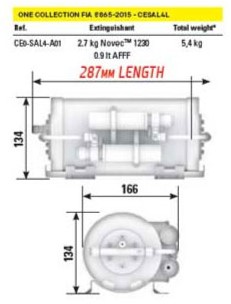

• Diameter: 134 mm
• Lenght: 275 mm
• Homologated for use on: petrol, petrol + up to 30% ethanol or methanol
• Suitable for electric and hybrid cars
• “L†version suitable for medium-large sized cockpit (from 4.1 m3 to 2.2 m3)
Parts included:
2,5x - Aluminium tubing 8mm L 4m [CD0-0323-A01]
2,5x - Sheath 10mm [CD0-0324-A01]
3x - Gas nozzle [CD0-0454]
2x - Cockpit Gas nozzle [CD0-0410]
2x - Cockpit nozzle fixing bracket [XMC-CD00059]
5x - 8mm 90° connection [CD0-0391-A02]
1x - 8mm T connection [CD0-0412]
2x - 8mm Y connection [CD0-0414]
6x - 8mm straight connection  [CD0-0416]
2x - Fixing brackets with clamps [CD0-0408]
1x - Control unit [CD0-0380-A01]
1x - Control unit wiring [CD0-0436]
1x - M5 Y wiring connector [CD0-0435]
1x - Activation button with M5 connector 0,5m [CD0-0432-A01]
1x - Activation button with M5 connector 1,5m [CD0-0432-A02]
1x - M5 extension wiring [CD0-0431]
2x - Activation button protection [CD0-0441]
